Wednesday, August 24, 2011

Typewriter

Have you ever used one?



DSCN1956_2

25 years ago, there were hardly any computers & even fewer people owned printers. So if you had to write a letter, you had two choices – either you write it or you use a typewriter.



DSCN1959_2

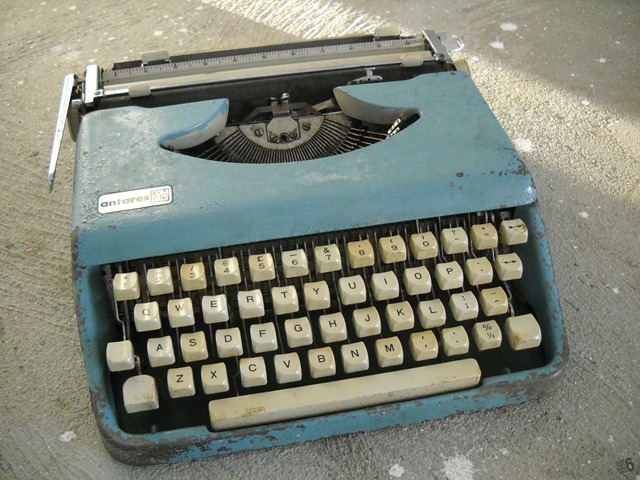

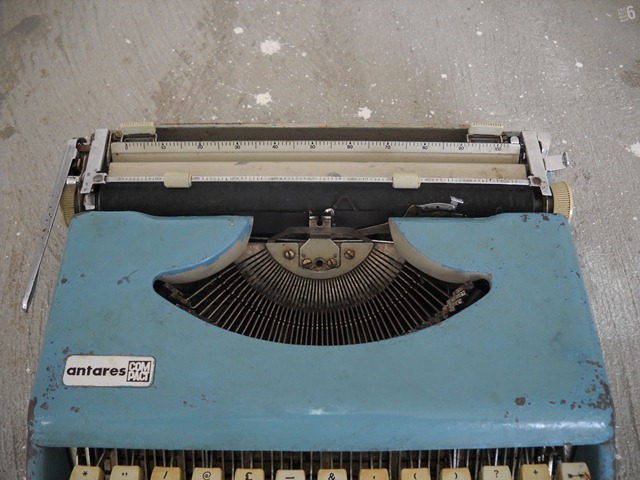

This is the Antares Compact portable typewriter. Of Italian make, it’s nearly as old as me and weighs around 3kg. Back in the late 1980s, it was being sold for around Rs 3000 (not in today’s currency).



DSCN1964_2

The training centre where you learned how to type (I know there was one in Curepipe) didn’t provide typewriters. Hence that’s why this portable version was bought along with the original case.



DSCN1967_2

Imagine people carrying this around in the bus, going to work... Indeed, this is the ancestor of the laptop.



DSCN1981_2

DSCN1992_2

Unscrewing the back.



DSCN1982_2

DSCN1989_2

DSCN1999_2

All it takes is one key press to trigger the complex system of printing.



DSCN2054_2

The QWERTY keyboard layout, invented in 1873, to prevent the multiple typebars from jamming (it still jams if I type too fast).



DSCN2147_2

DSCN2148_2

It has all the basics – left/right Shift key, Caps Lock & Backspace, but no Return/Enter key. The Caps Lock in fact holds down the Shift key.



DSCN2040_2

There also this one unknown key which doesn’t appear to trigger anything: ↔



DSCN2035_2

The smiley.



DSCN2243_2

The character map. For the accents, you have to type the letter, backspace once & then type the accent on the letter.



DSCN2056_2

Typewriting is exactly like printing.



DSCN2163_2

DSCN2069_2

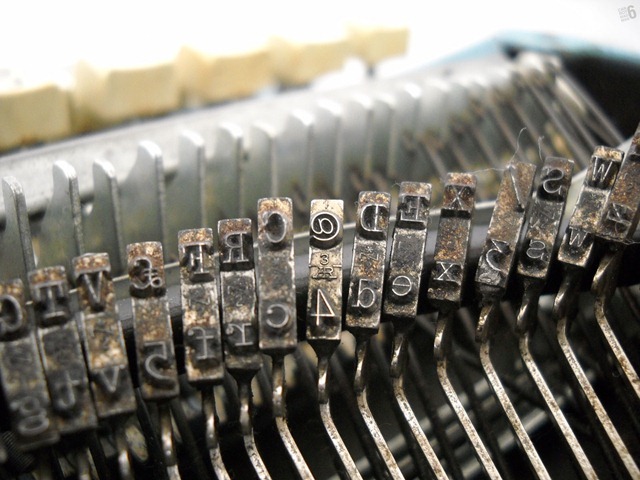

These are the typebars on which a character is embossed on its head in reverse.



Stitch_Print_2

When you press a key, the typebar arm moves forward. At the same time, the ink ribbon moves up & when the head hits the ribbon, a mark is printed on the paper wrapped around the platen.



DSCN2169_2

There are 2 characters on each head. The upper character can be printed by using Shift key which moves the platen upwards.



DSCN2155_2

DSCN2158_2

The ink ribbon works in the same way like carbon paper. There are two slots to insert the ribbon cartridges because when you type a letter, the ribbon rotates as it moves (a bit like a cassette).



DSCN2159_2

You have the option to use ribbons of different colours & the colours can be switched using this dial.



DSCN2059_2

DSCN2119_2

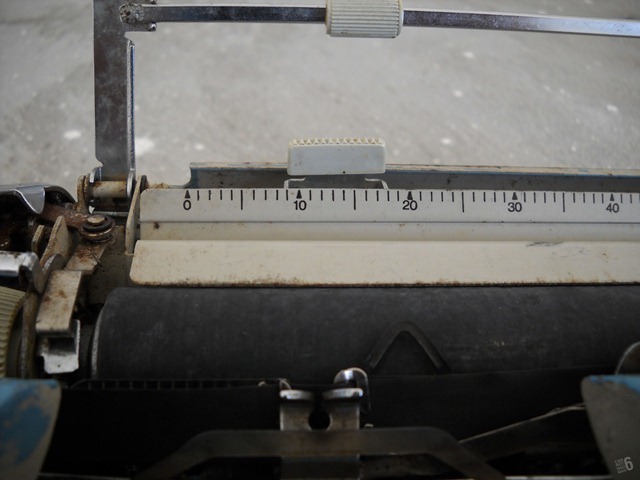

The paper is inserted through the platen & the print margin is adjusted through these tabs. The typewriter does not print beyond this margin. When you have to return a new line, it starts exactly at the left margin tab. For the right margin, it uses another system.



Stitch_Holder_2

The paper is held in place on the platen using this holder.



DSCN2064_2

These are the rails on which the carriage moves.



DSCN2123_2

For the right margin, the typewriter does not prevent you from printing because you may not have finished the word you’re typing before the right margin is reached. Instead, the margin tab strikes this bell to inform you that the margin is near.



DSCN2126_2

This lever on the right is what triggers the carriage return, i.e. allows you to start a new line of text.



DSCN2129_2

Stitch_LineHeight_2

When you drag the lever up & push it to the right, it also scrolls the paper upwards. You can adjust the line height of new lines.



DSCN2141_2

& that’s the rail & the wire mechanism which moves the carrier assembly to the left each time you press a key.



DSCN2176_2

& the end result is this.



DSCN2184_2

Of course, if you make a mistake, there’s no Ctrl+Z, it’s either the correction fluid or a fresh new document.



DSCN2182_2

Long before touchscreen keyboards, Swype, T9, PS/2 keyboards were invented… I learned to type on this.



DSCN2153_2

This was my first intelligent machine.



DSCN2125_2

DSCN2143_2

What makes it even more amazing is that this is a totally mechanical device. No electric input at all. It just functions on human power.



DSCN2060_2

DSCN2083_2

DSCN2050_2

More than a machine, it’s a work of art. One that still works.
